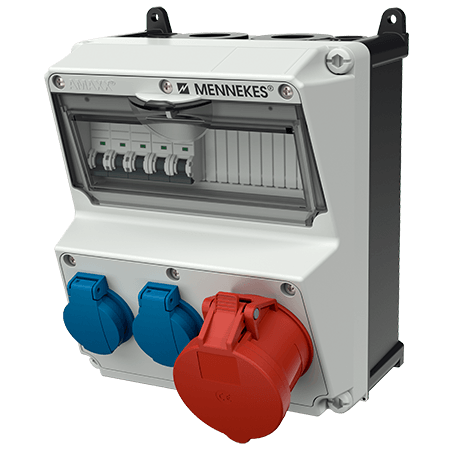

AMAXX® receptacle combination 920011
With AMAXX® you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one enclosure with external mounting that allows installation by one person. The hinged enclosure cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX® is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.
CEE 32 A, 5 p, 400 V
SCHUKO®
- pre-wired for installation
- hinged to the side
- enclosure and insert made of AMAPLAST
- fusing behind a transparent cover
Onze producten kunt u in het gedeelte verlanglijstje/winkelmand in verschillende lijsten
beheren.
Geef de nieuwe lijst een naam
- Voer een lijstnaam in
- De lijstnaam bestaat al
- Voer een geldige lijstnaam in
Technische specificaties
AMAXX® receptacle combination 920011
| CEE 32 A, 5 p, 400 V | 1 |
|---|---|
| SCHUKO® | 2 |
| Beveiliging |
|
| Voorbeveiliging max. | 63 A |
| InA | 48 A |
| RDF | 1 |
| Aansluiting / voedingskabel |
|
| Beschermingsgraad | IP44 |
| Behuizing materiaal | Kunststof |
| Gewicht | 3320 g |
| Hoogte | 260 mm |
| Breedte | 225 mm |
